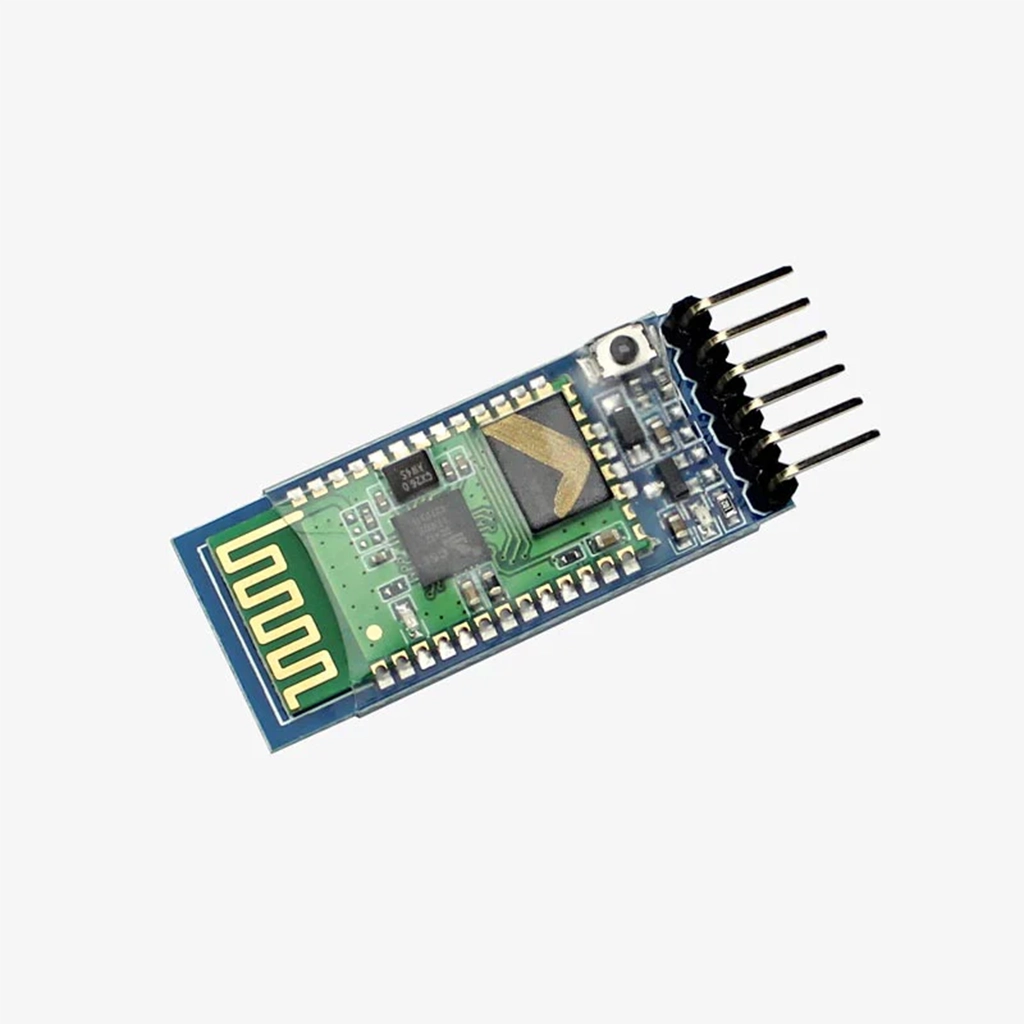

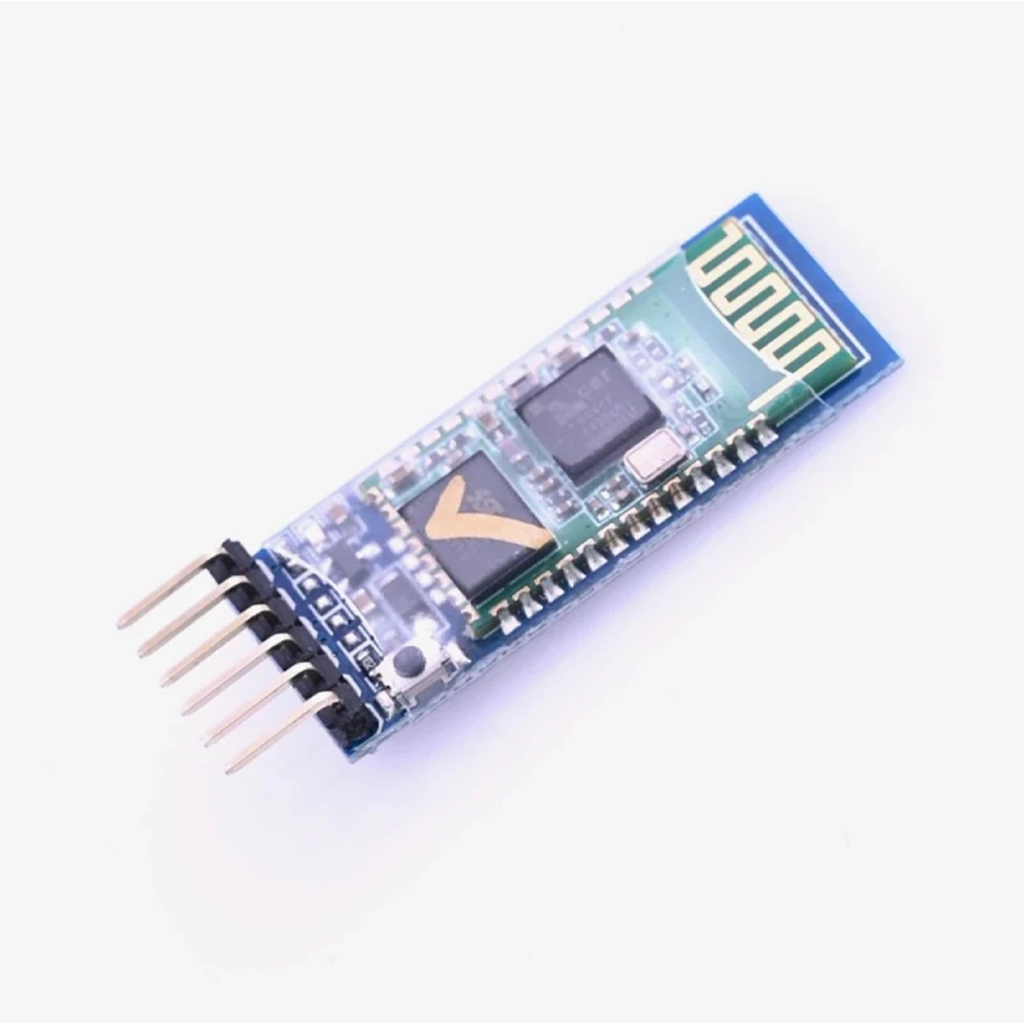

Project – HC-05 Bluetooth Module (Pack of 1)

Original price was: ₹449.00.Current price is: ₹320.00.

Specifications

Profiles: Bluetooth serial port Profile
Dimension: 26.9mm x 13mm x 2.2 mm
Bluetooth protocol: Bluetooth Specification v2.0+EDR
Frequency: 2.4GHz ISM band, Range
Modulation: GFSK (Gaussian Frequency Shift Keying)
Sensitivity: -84dBm at 0.1% BER
Speed: Asynchronous: 2.1Mbps_max / 160 kbps, Synchronous: 1Mbps/1Mbps
Emission power: 4dBm, Class 2
Power supply: +3.3V, 50mA
Security: Authentication and encryption
Working temperature: -20°C to +75°C

Body Color
Brand
Color
Design
Name
Point Type
Salect
Salect Alphabet
Salect Board Size
Salect Chart Number
Salect Color
Salect Colors
Salect Colour
Salect Colour Set
Salect Design
Salect Fragrance
Salect Model
Salect Number
Salect Pages
Salect Poster
Salect Quantity:
Salect Size
Salect Size (Ohm)
Salect Size and Color
Salect Thickness
Salect Type
Salect Types
Salect Weight
Select No. of Sheets
Size
Type
Types
Salect Type & Color

Quantity	Price	Discount
10+	₹304.00	5%

In stock

Add to compare

Add to wishlist

SKU: SV_36881 Categories: Electronics Project, Sensors / Module Tags: Bluetooth Module, Sensors / Module

Description

The IoT enabled projects require two way communication between the microcontroller and various sensors. There are various methods you can do that, Wired Communication, WiFi, Bluetooth are some among them. The HC-05 Bluetooth Module adds wireless communication to your project to communicate via Bluetooth to any Bluetooth enabled Laptop or Mobile Device. The module communicates at 9600 baud rate via USART protocol. It can be used in applications like communication between two microcontrollers, data logging, wireless robots, wireless sensors data acquisition and home automation.

Product Description

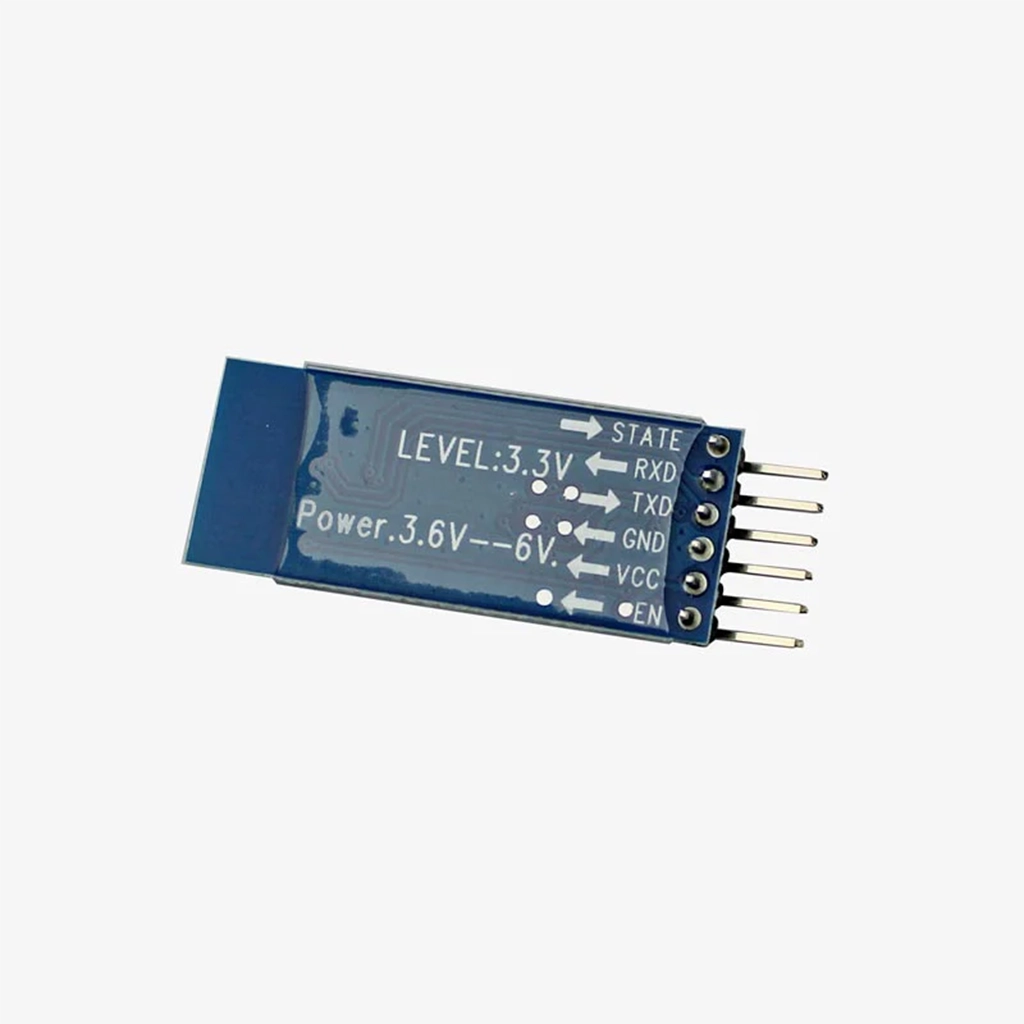

The module has two operating modes Data mode and Command Mode. To connect it with your Arduino or Raspberry Pi connect the TX and RX pins to the controller and power the device with VCC pin connected to 5V pin. While in data mode it can send or receive the data from other Bluetooth devices and in command mode it will change default device settings.
