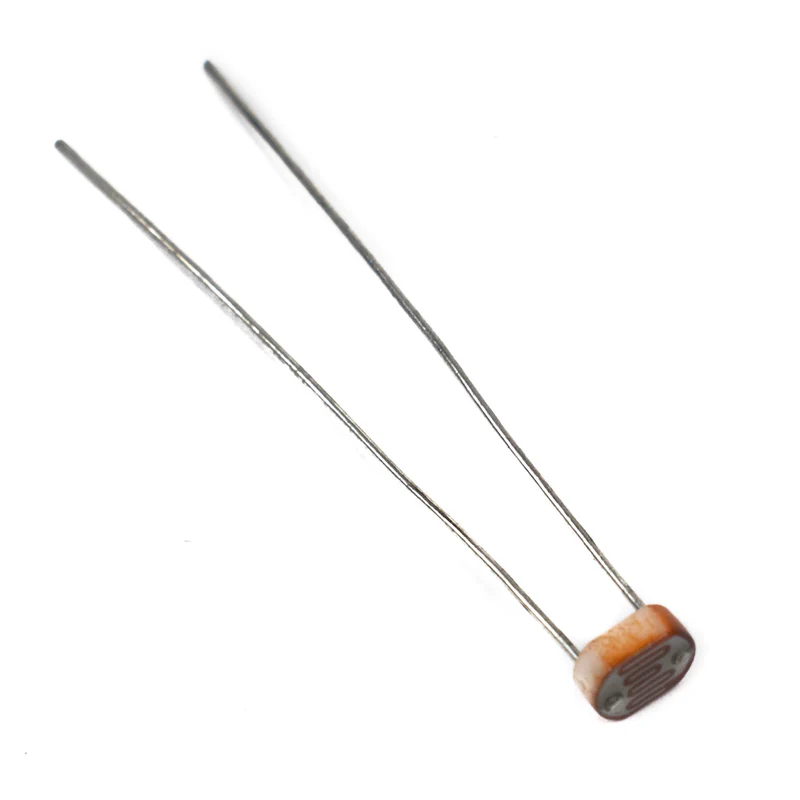

Project – Light Dependent Resistor (LDR) 5mm

Light Dependent Resistor is a special type of resistor used for the detection of light. As it is a type of resistor hence it doesn’t have any polarity and can be connected in any direction. LDR provides high resistance of several Mega Ohm in the absence of light but as the light starts striking on its surface the resistance offered by the LDR gradually decreases to a few Ohm. It is widely used in smart street lights, automatic headlight dimmers, automatic rearview mirrors, etc.

Diameter : 5 mm
Max Voltage : 150 volts
Max Power : 100 mW
Light resistance (10 lux) : 5-10 kohm
Dark Resistance : >100 kohm
Operating Temperature : -30° to 70° C
Number of Pins : 2
