Reed Switch Sensor Module

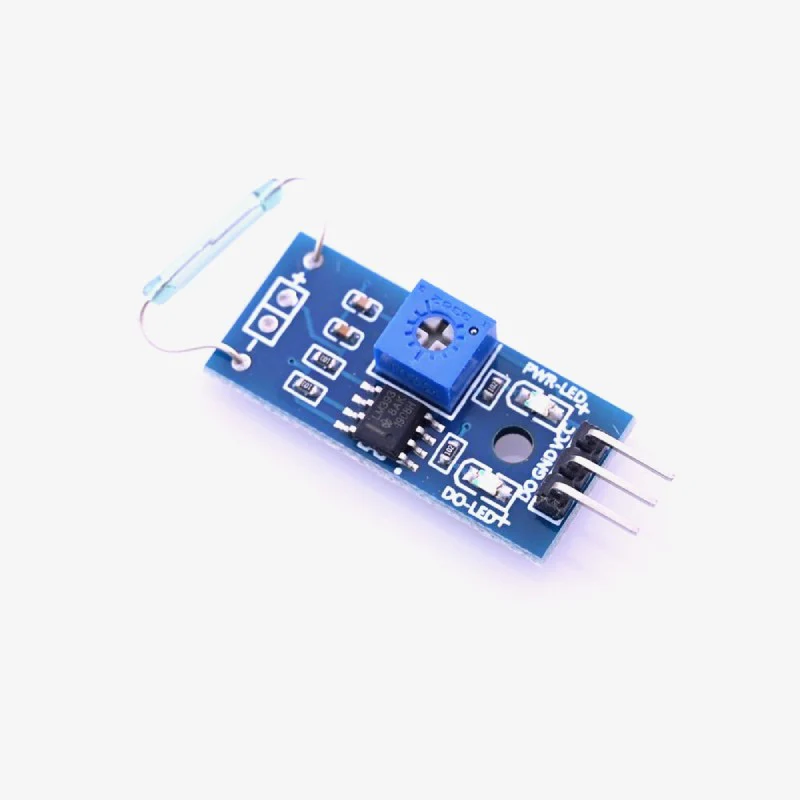

The Reed Switch Sensor Module offers a simple, reliable way to detect the presence of a magnetic field, functioning purely as a switch rather than a graduated measuring device like a Hall Effect or KY-035 sensor. At its core sits a glass-enclosed reed switch filled with inert gas, containing two ferrous elastic reeds that snap together to close the circuit whenever a magnet is brought nearby, and spring back open once it moves away.

Because the switching action is entirely mechanical-magnetic, this module is well suited to applications like washing machine lid detection, automatic door-opening systems, and electromagnetic relay circuits where a clean binary trigger is all that’s needed. Interfacing it with a microcontroller is straightforward: connect the digital output pin to a digital input on your board, and VCC/GND to the corresponding 5V and ground pins.

• Operating Voltage – 3.3V to 5V DC
• Output Format – Digital switching output (0 and 1)
• Comparator IC – LM393 onboard
• Indicators – LEDs for output and power status
• Switching Element – Sealed reed switch with inert gas fill
• Trigger Type – Magnetic field proximity
• Typical Uses – Door/lid sensing, security triggers, relay control

Simple, durable, and easy to wire, the Reed Switch Sensor Module is a dependable magnetic-trigger solution for any automation project.
