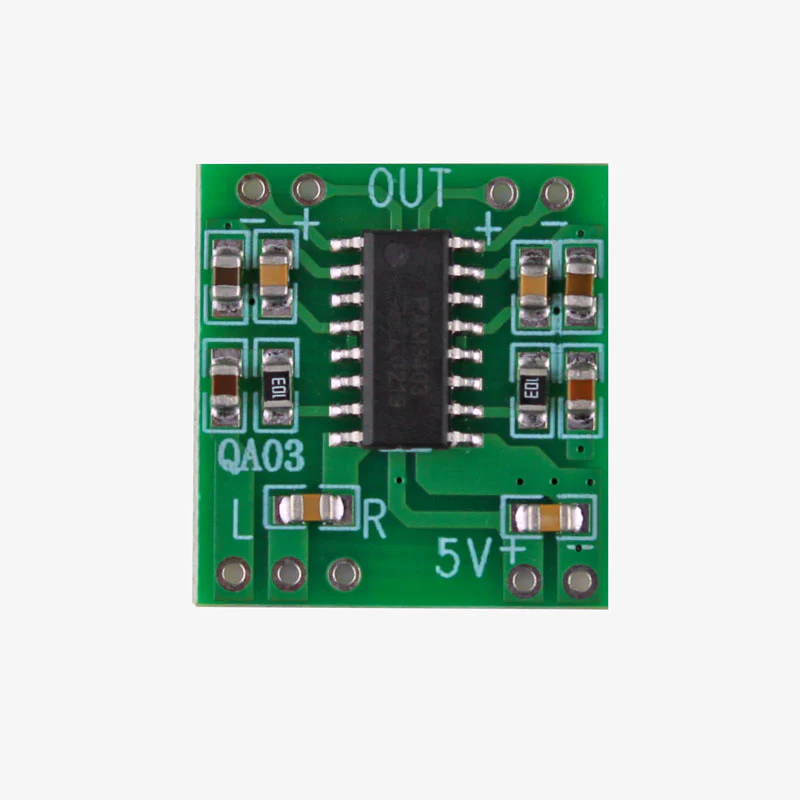

PAM8403 Digital Audio Amplifier Module
Original price was: ₹199.00.₹70.00Current price is: ₹70.00.
PAM8403 Digital Audio Amplifier Module, dual channel, class D, 2.5V-5V for driving small speakers.
The PAM8403 Digital Audio Amplifier Module is a compact class D stereo amplifier board built around the PAM8403 IC, capable of driving two small speakers with clean, efficient sound reproduction. Its dual-channel design accepts both left and right audio input, making it a direct drop-in for building small speaker systems, portable audio projects, or upgrading the sound output of a DIY device.
Simply power the module (typically at 5V), feed in the audio signal, and connect two 4Ω or 8Ω speakers to the outputs to hear amplified sound – no additional circuitry required. Thanks to its high efficiency and USB-power compatibility, it consumes very little energy, and its small board footprint of just 24 x 15mm lets it fit into tight enclosures. For mono amplification needs, the LM386 Amplifier Module is a suitable alternative.
- Amplifier IC – PAM8403, 2-channel, 3W class D
- Output Power – 3W + 3W (at 4 ohm)
- Working Voltage – 2.5V to 5.5V
- Board Size – 24 x 15mm
- Efficiency – 85%
- Speaker Compatibility – Directly drives 4Ω/8Ω small speakers
- Filter Design – Unique filterless class D digital power stage
- Power Source – Can run directly from computer USB power
Compact, efficient, and easy to wire up, the PAM8403 Digital Audio Amplifier Module is an excellent choice for adding stereo sound to any electronics project.
