Project – L298 Motor Driver Controller Module
Original price was: ₹399.00.₹225.00Current price is: ₹225.00.
| Body Color | |
|---|---|
| Brand | |
| Color | |
| Design | |
| Name | |
| Point Type | |
| Salect | |
| Salect Alphabet | |
| Salect Board Size | |
| Salect Chart Number | |
| Salect Color | |
| Salect Colors | |
| Salect Colour | |
| Salect Colour Set | |
| Salect Design | |
| Salect Fragrance | |
| Salect Model | |
| Salect Number | |
| Salect Pages | |
| Salect Poster | |
| Salect Quantity: | |
| Salect Size | |
| Salect Size (Ohm) | |
| Salect Size and Color | |
| Salect Thickness | |
| Salect Type | |
| Salect Types | |
| Salect Weight | |
| Select No. of Sheets | |
| Size | |
| Type | |
| Types | |
| Salect Type & Color |
| Quantity | Price | Discount |
|---|---|---|
| 10+ | ₹213.75 | 5% |
In stock

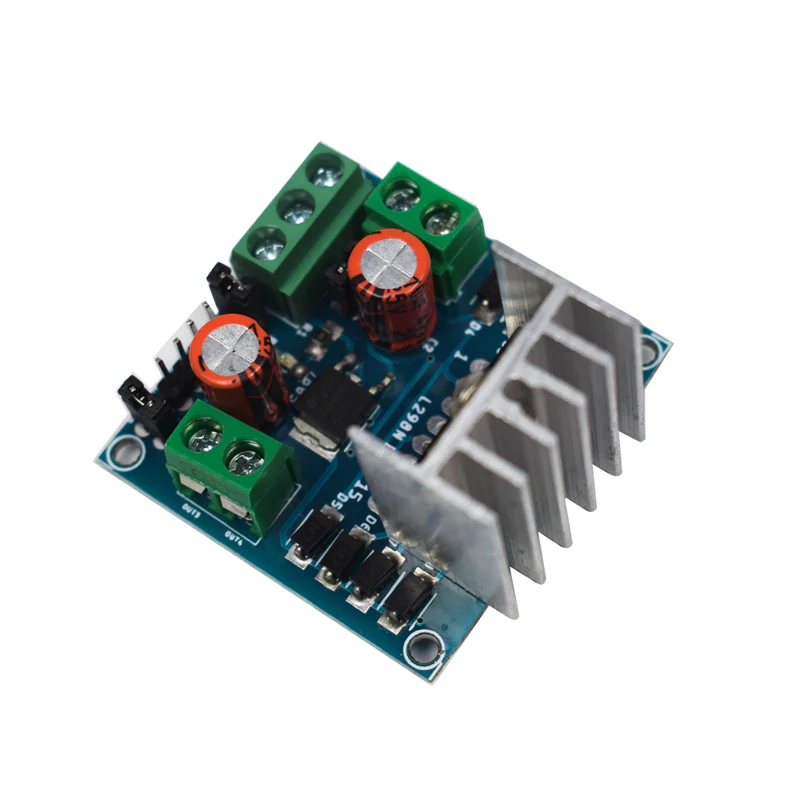

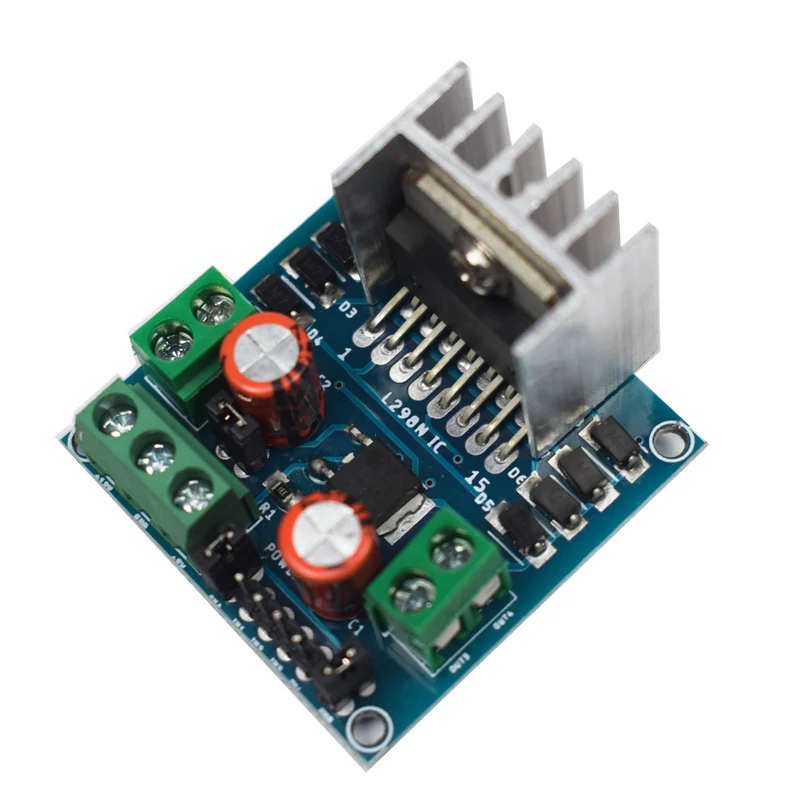

This is an L298N Motor Driver Controller Module Dual H-Bridge Motor Driver. The L298N Motor Driver Module is a dual full-bridge driver with high voltage and current. It accepts TTL logic-level inductive loads such as solenoids, relays, DC motors, and so on. This module controls two DC motors in any direction and speed at the same time. There are two enable inputs, which independently enable or disable the device based on the input signals. This Motor Driver module consists of an L298 Motor Driver IC, 78M05 Voltage Regulator, resistors, capacitor, Power LED, and 5V jumper in an integrated circuit.
Features:-
- The high-power motor driver is perfect for driving DC motor and stepper motor.
- Can control up to 4 DC motors and 2 DC motors with Directions and speed control.
- L298 contains an H-Bridge circuit which can drive a current in either polarity and be controlled by Pulse Width Modulation (PWM)
- Ideal for robotic applications and well-suited for connection to a microcontroller requiring just a couple of control lines per motor
- Interfaced: simple manual switches, TTL logic gates, relays, etc
- Motor & Drivers | Module | Motor Driver Module | Robotics.
Product : L298 Motor Driver Module
Type : Dual H-Bridge Motor Driver
Operated IC : L298N
No of Output : 04
No. of Control Motor : 02
Max Current : 2A
Drive Voltage : 5V~30V
Board Dimension (L*W*D) : 42 X 43 X 27(mm)
Country of Origin : China
