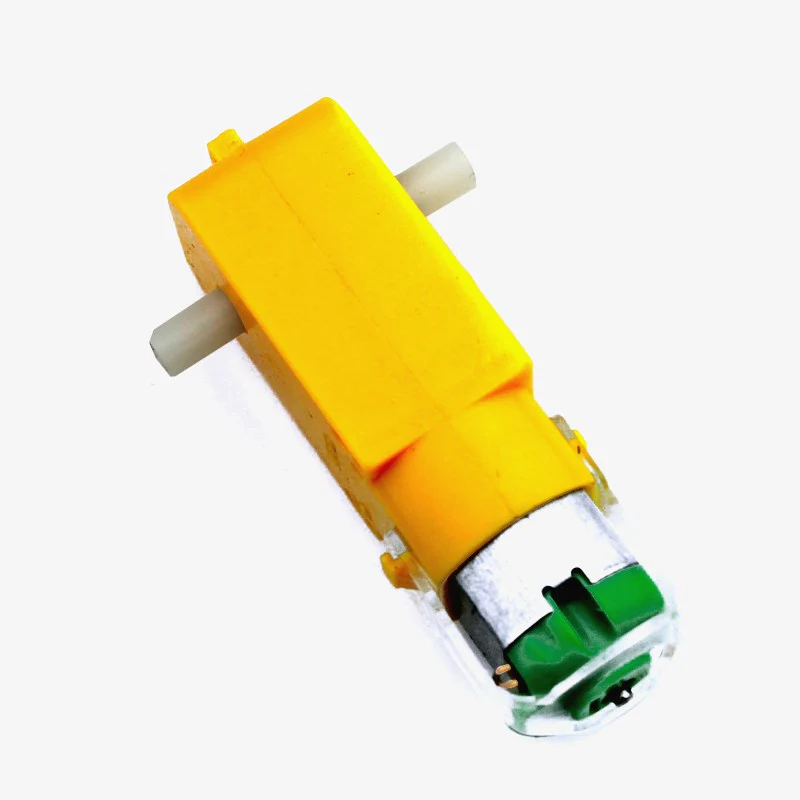

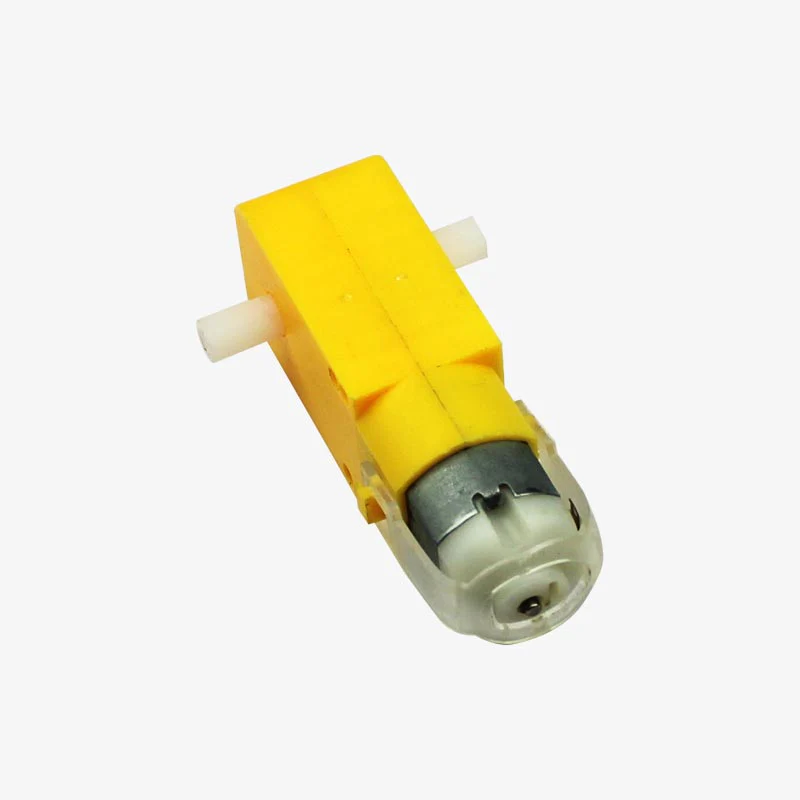

Dual shaft geared motors are useful in robotics applications. Shaft on both sides allows the user to use a Wheel and an Encoder simultaneously. Not only this, the user gets enough headroom for the orientation of the motor and can be used in any orientation as per the application is required.
It is a plastic based geared Dual shaft DC motor operating between a voltage range of 3V to 9V and has a torque of 0.8 Kg/cm with an RPM of 100 which is pretty decent for most of the applications. It is recommended to use this motor with more than 5V to have optimum torque in working condition.
Specification :–
Operating Voltage (VDC) : 3 ~ 12V
Shaft Length (mm) : 8.5
Shaft Diameter (mm) : 5.5
No Load Current (mA) : 40-180mA.
Rated Speed After Reduction (RPM) : 100
Rated Torque (Kg-Cm) : 0.35
Weight (gm) : 30
Dimensions in mm (LxWxH) : 70x35x22
Gearbox Shape : Straight
Dual Shaft DC Geared Motor (300RPM) Applications:
- Robotics
- Automation
- In various Vehicle
- Toys
- Different gear movement related operations
