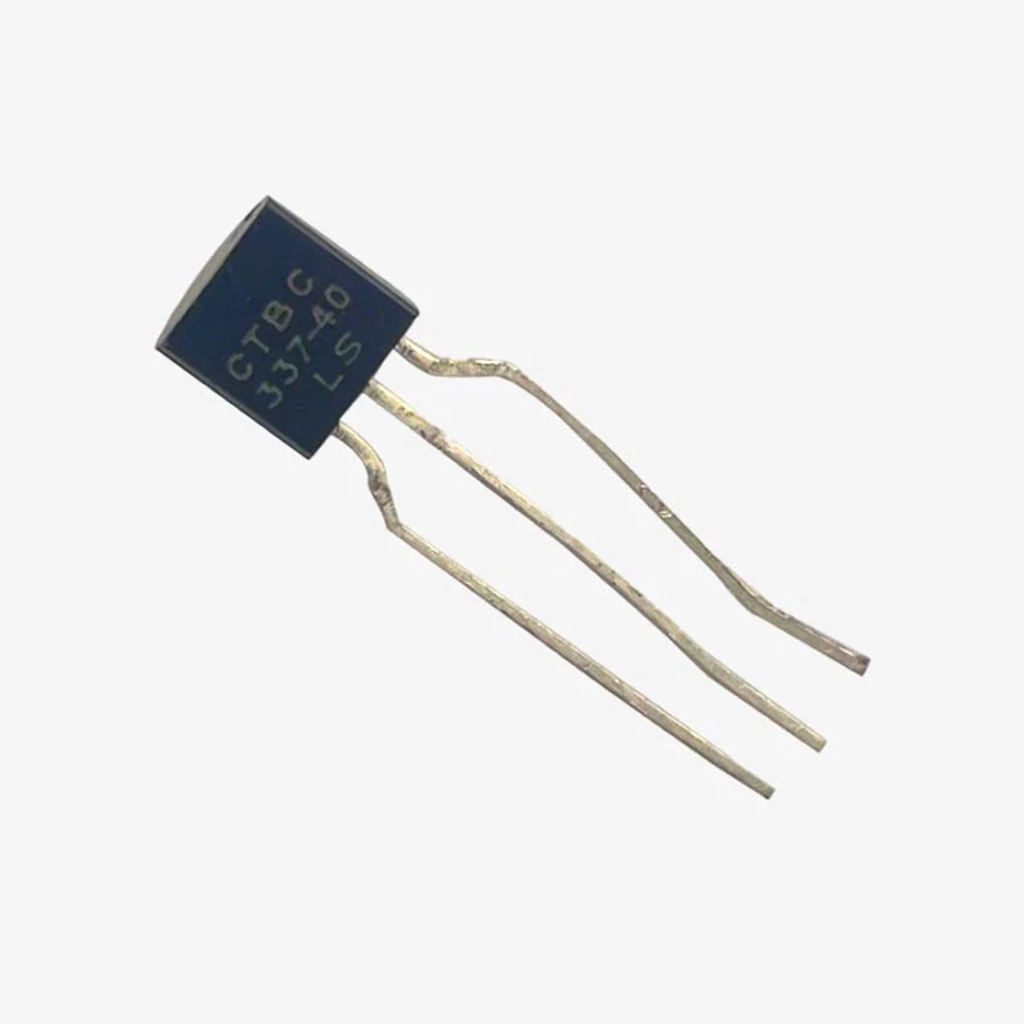

BC337 NPN Transistor, TO-92

The BC337 is an NPN transistor offering an excellent maximum current gain of up to 600, with typical operation around 110, making it a natural amplifier and general-purpose switching choice. It serves as the complementary NPN counterpart to the BC327 PNP transistor, making the pair useful together in push-pull and complementary amplifier designs.

Rated for a maximum collector current of 800mA and maximum collector power dissipation of 625mW, the BC337 handles pre-amplifier, signal-conditioning and general-purpose switching duties comfortably. Its 100MHz transition frequency and 45V maximum collector-to-emitter voltage give it solid headroom for a wide range of small-signal circuits.

• Transistor type – NPN
• Package – TO-92
• Max collector current – 800mA
• Max Collector-Emitter voltage – 45V
• Max Collector-Base voltage – 50V
• Max Emitter-Base voltage – 5V
• Max collector dissipation – 625mW
• Max transition frequency – 100MHz

As the complementary transistor to the BC327, the BC337 rounds out a versatile pair for push-pull amplifier stages and general switching circuits handling loads under 800mA. The BC337 NPN Transistor is a handy addition to any electronics parts bin.
