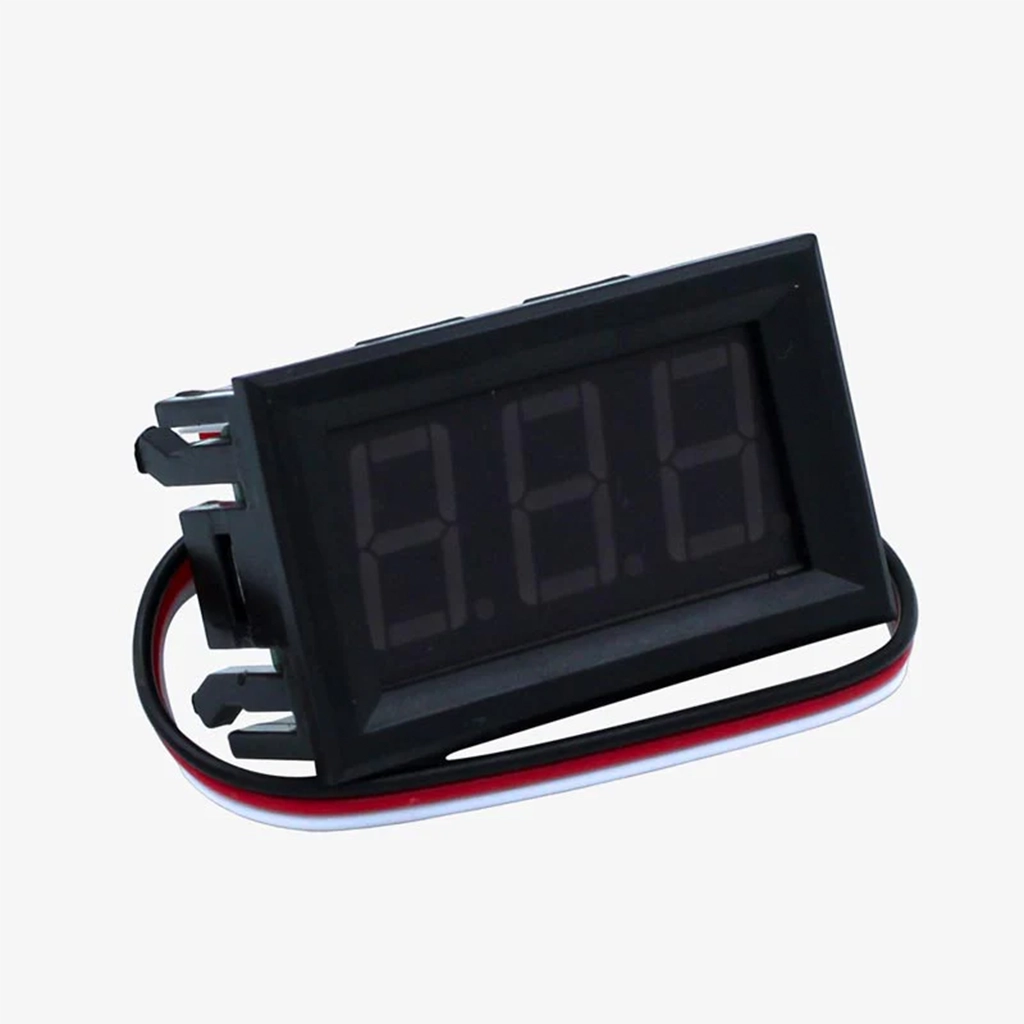

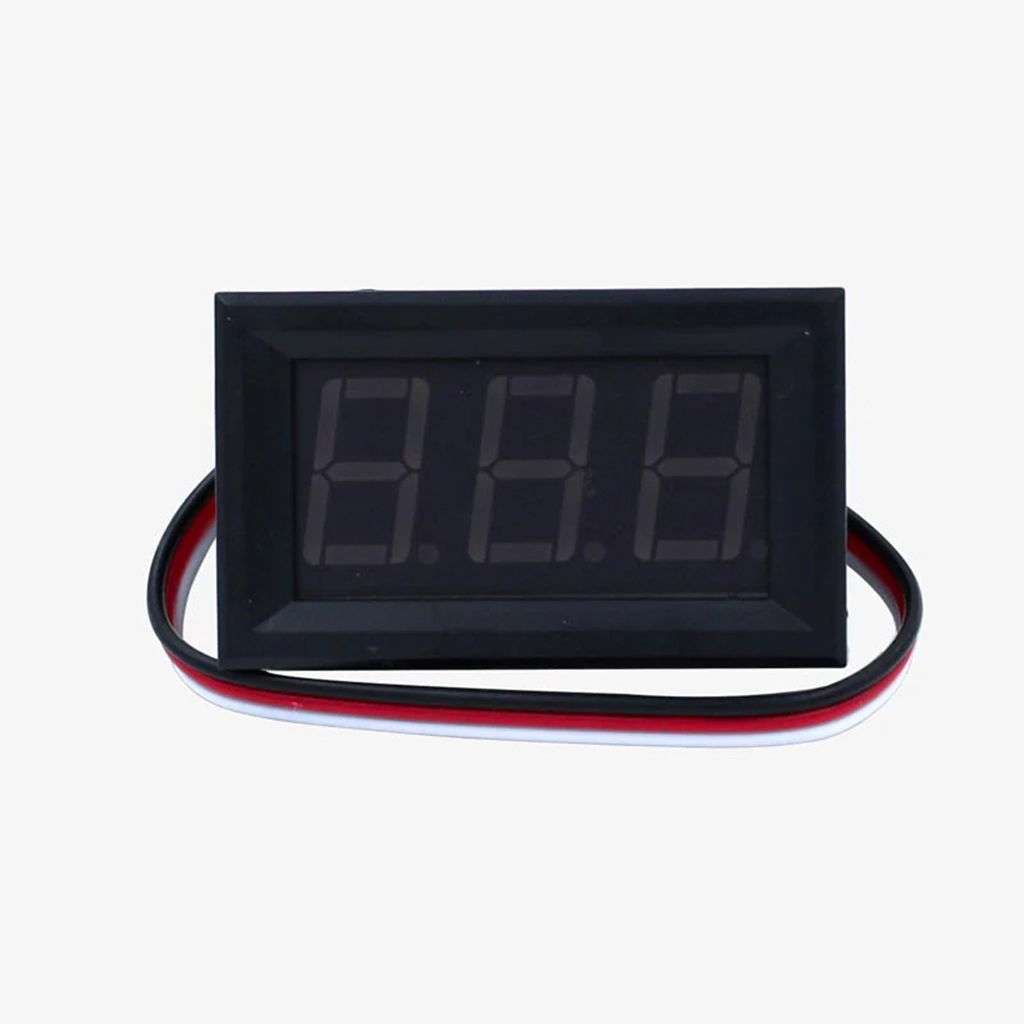

DC Voltmeter Panel Digital LED, 5-30V Green

This DC Voltmeter Panel Digital LED is a compact 0.36-inch panel meter designed to replace old, hard-to-read analog voltmeters in project enclosures and control panels. It measures voltages ranging from 5V to 30V DC with just 1% error, giving accurate readings in a small, easy-to-mount package.

Only two wires are needed to connect the meter to your target circuit, with the DC voltage for powering the display itself drawn directly from the circuit being measured. This keeps installation simple and trouble-free, whether you are monitoring a project power supply, a vehicle battery or a solar power system.

• Measuring range – 5V to 30V DC
• Accuracy – 1% error
• Display – Three-digit 0.36-inch LED segment display
• Refresh rate – 500ms
• Power supply – 3.0V to 30V
• Operating temperature – -10°C to 65°C
• Dimensions – 23 x 15 x 10mm (without mounting tabs)
• Panel mounting hole size – 24 x 15mm
• Lead length – 15cm

Ideal for monitoring project power supplies up to 30V, or tracking 12V/24V battery voltage in cars, motorcycles, UPS systems and solar setups, this meter connects the red wire to the measurement point and the black wire to ground. The DC Voltmeter Panel Digital LED is a simple, reliable upgrade for any panel needing clear voltage monitoring.
